*Gambar hanya ilustrasi
Informasi Produk
- Kategori: High Density Server
- Seri Produk: Rainer ARCA HDXa

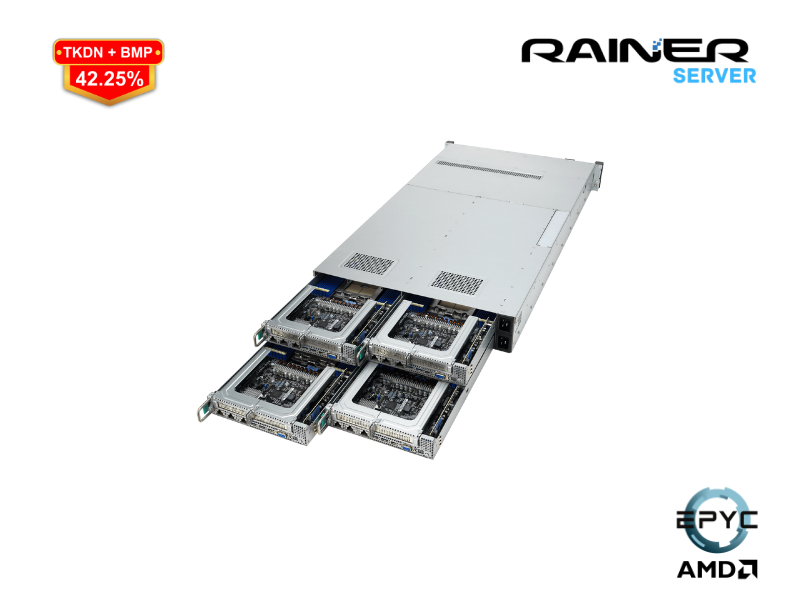

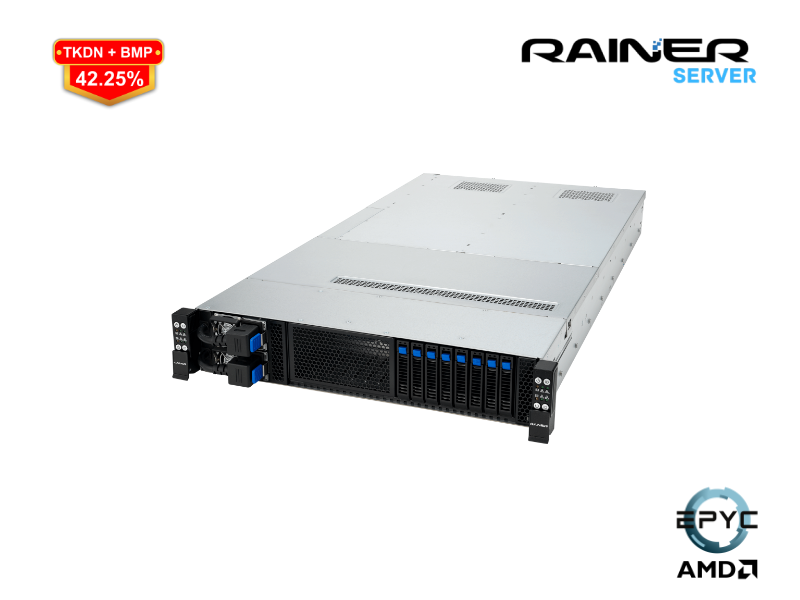

Rainer ARCA HDXa
Rainer ARCA HDXa adalah server multi-simpul dengan kepadatan tinggi yang berbasis pada prosesor seri AMD EPYC 9004 terbaru, yang dioptimalkan untuk solusi infrastruktur komputasi, penyimpanan, jaringan, atau virtualisasi berbasis perangkat lunak. Menyediakan pusat data kecil dan besar dengan skalabilitas, fleksibilitas, dan efisiensi biaya yang lebih baik.
Fitur Utama
- Powerful performance: Powered by AMD EPYC 9004 processors with 96 Zen 4 cores, 12-channel, up to 4800 MHz DDR5 and support for a maximum TDP of up to 400 watts per socket.
- Scale-out infrastructure: The four-node architecture design is ideal for CDN, HCI and cloud workloads to drive IT agility and digital transformation.
- Direct liquid cooling (DLC): Fully designed for cooling integration and installation, including CPU with higher TDP to increase data center efficiency and power density.
- Scale-up node design: Each node supports for dual processors, 24 DIMM, two PCIe 5.0 x16 slots and two M.2, two 10G LAN and 2 NVMe.
- High power efficiency: Redundant 3200W or 2600W Titanium power supplies.
- Enhanced IT-infrastructure management: ASMB11-iKVM remote control with ASPEED AST2600, Server Control Center IT management software and hardware-level Root-of-Trust solution.
Aplikasi Utama
- HPC
- Hyper Converged Infrastructure (HCI)
- Data Center
- Enterprise Server
- Financial Analysis
- Mission-critical applications
Spesifikasi
| CPU | Soket Ganda |
Per node: 2 x Soket SP5 (LGA 6096) Prosesor AMD EPYC™ Seri 9004 (hingga 400W) |
|---|---|---|
| Memori | Jumlah Slot | Per node: 24 slot DIMM |
| Kapasitas | Maksimum hingga 3TB per node | |
| Jenis Memori | DDR5 4800/4400 RDIMM/3DS RDIMM | |
| Total Slot PCIe | Per node: 2 x Slot ekspansi | |
| Slot Ekspansi | Jenis Slot PCIe | 2 x PCIe Gen5 x16, LP (CPU1) |
| Pengontrol Disk | Perangkat Booting | Per node: 2 x M.2 (Hingga 22110) (Mendukung SATA/PCIe M.2) |
| Ruang Penyimpanan | 8 x ruang penyimpanan hot-swap 2,5” (NVMe/SATA/SAS*) | |
| Jaringan | LAN |
Per simpul: 2 x port LAN 10GbE 1 x Port Manajemen |
| Grafik | VGA | Kecepatan AST2600 64MB |
| Port I/O Depan | N/A | |
| Port I/O Belakang | Terintegrasi |
Per node: 2 x port USB 3.1 Gen1 1 x port VGA 1 x port Manajemen 4 x port LAN 1GbE atau 2 x 10GbE |
| Saklar/LED | Saklar Depan/LED |
Per Node: 1 x Saklar Daya/LED, 1 x Saklar Lokasi/LED, 1 x LED Pesan, 2 x LED LAN |
| Saklar Belakang/LED |
Per Node: 1 x Sakelar Daya/LED, 1 x Kode Q/Port 80 LED |
|
| Sistem Operasi | Windows® Server, RedHat® Enterprise Linux, SuSE® Linux Enterprise Server, CentOS, Ubuntu, Vmware | |
| Solusi Manajemen |
Pusat Kontrol Server ASMB10-iKVM terintegrasi untuk KVM-Over-IP |
|
| Ukuran |
847mm x 444mm x 87.3mm (2U) 33.35” x 17.48” x 3.43” |
|
| Berat Bersih | 29.25 kg | |
| Catu Daya |
Catu Daya Titanium 80 PLUS 2600W Redundan 1+1 Catu Daya Titanium 80 PLUS 3200W Redundan 1+1 |
|
| Environment |
Suhu operasi: 10℃ ~ 35℃ Suhu non-operasi: -40℃ ~ 60℃ Kelembapan non-operasi: 20% ~ 90% (Tidak mengembun) |
|
